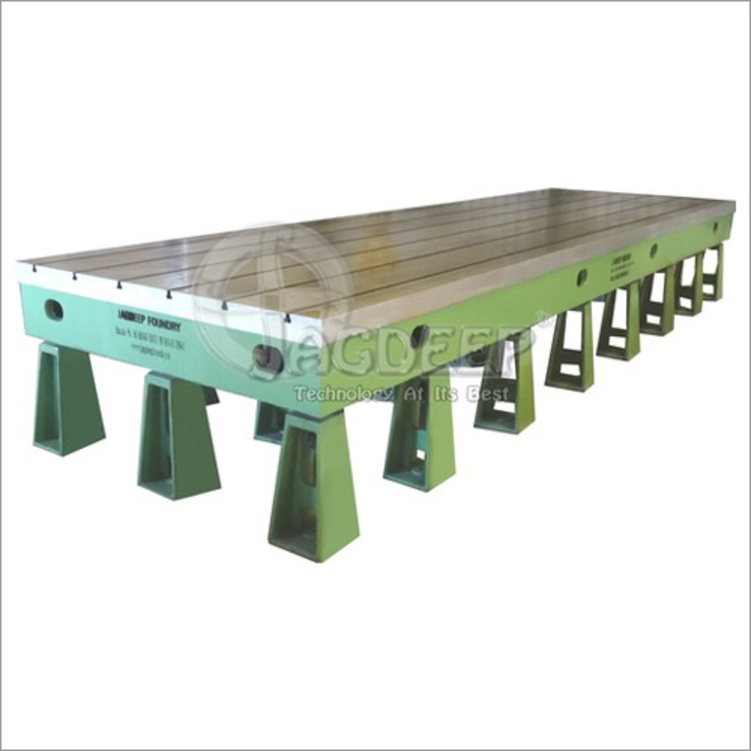

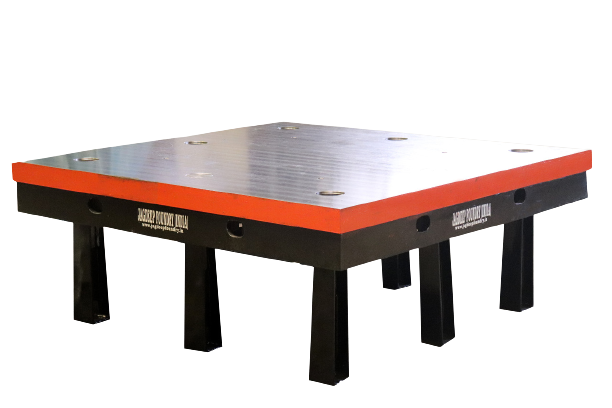

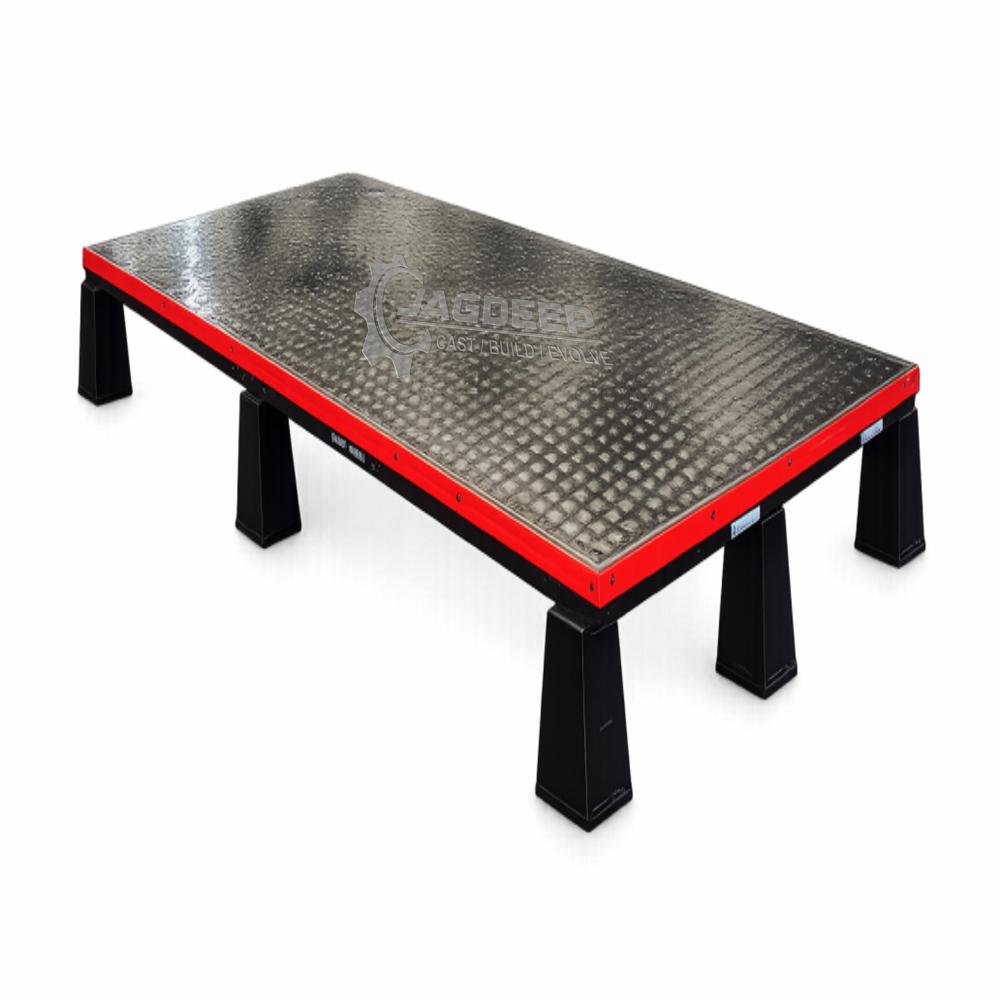

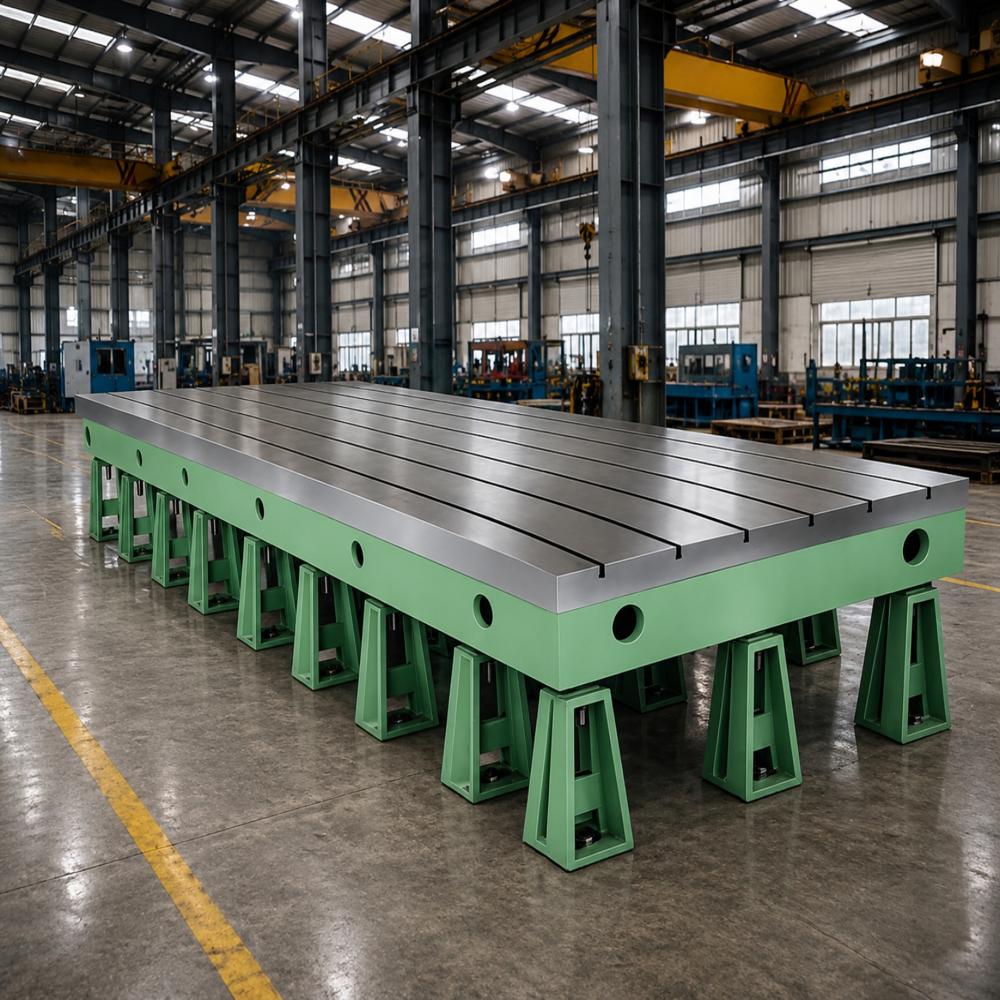

Cast Iron Surface Plate

Name: Cast Iron Surface Plate
Brand: JAGDEEP FOUNDRY
Price: 1000000.0 INR
Availability: InStock

1000000.0 INR/Unit

Get a Price/Quote

Product Details:

Usage Other
Size Standard
Function Marking, Inspection, checking accuracy
Accuracy 100 %
Operating Mode Manuel
Product Type Cast Iron Surface Plate
Control Mode Manuel
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

Cast Iron Surface Plate Price And Quantity

Minimum Order Quantity 1 Unit
Price 1000000.0 INR/Unit

Cast Iron Surface Plate Product Specifications

Standard High
Operating Mode Manuel
Product Type Cast Iron Surface Plate
Usage Other
Color Silver
Function Marking, Inspection, checking accuracy
Size Standard
Accuracy 100 %
Control Mode Manuel

Cast Iron Surface Plate Trade Information

Supply Ability 1 Unit Per Month
Delivery Time 3-4 Months
Main Export Market(s) Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
Main Domestic Market All India

Product Description

We are listed as the renowned manufacturer and exporter of superior quality Surface Plate. Our skilled professionals use best in class material that is sourced from the authentic vendors, to manufacture this surface plate.This surface plate is made generally as per IS-2285:2003 in three grades of accuracies. The Surface Plate offered by us is stringently tested on various parameters & utilized as precision reference base for inspection, making and layout.

Specification : Size (in mm)

2000 x 1250	2000 x 1750	3000 x 3000
2000 x 1500	2500 x 2000	3500 x 2500
2000 x 2000	2500 x 2500	4000 x 1000
2400 x 1200	3000 x 1000	4000 x 2000
2500 x 1000	3000 x 1250	5000 x 1000
2500 x 1250	3000 x 1500	5000 x 2000
2500 x 1500	3000 x 1600	6000 x 1000
2500 x 1600	3000 x 2000	6000 x 2000

Used as precision reference base for inspection, marking and layout.

We can also manufacture surface plates as per customer requirement.
Standard size Surface Plates are made generally as per IS-2285:2003 in three grades of accuracies and have hand-scraped finish.
Surface Tables are made to Grade-1, 2 and 3 flatness accuracies of DIN-876 and have hand-scraped / ground finish.
M.S. Fabricated stand or C.I. Column type floor stands supplied at extra cost.
Grid lines, Tapped holes and T-slots can be provided at extra cost.

Technical Details

Uncompromising Accuracy for Industrial Applications

Our Cast Iron Surface Plate is meticulously crafted to provide 100% accuracy, making it indispensable for precision-driven industries. It is expertly designed to facilitate tasks like marking, inspection, and accuracy verification, enabling superior quality control during manufacturing and assembly processes. The robust construction ensures long-term durability and maintains exact standards even with continuous use.

Manually Controlled for Reliable Results

With full manual control for both operation and precision checking, this surface plate offers operators direct engagement during critical measurement processes. This manual approach not only enhances usability but also safeguards against processing errors that could occur with automated systems, ensuring every inspection meets prescribed standards.

FAQ's of Cast Iron Surface Plate:

Q: How should the Cast Iron Surface Plate be used in industrial applications?

A: The surface plate is primarily used for marking, inspection, and accuracy checking of components. It serves as a reliable reference plane for measurements, allowing technicians to manually verify the flatness and dimensional precision of workpieces during manufacturing and assembly.

Q: What makes this surface plate highly accurate?

A: This plate is engineered from high-quality cast iron and manufactured to 100% accuracy standards, ensuring exceptional flatness and stability. Each unit undergoes rigorous inspection to meet high-standard specifications for industrial usage.

Q: When should the Cast Iron Surface Plate be recalibrated?

A: Recalibration intervals depend on frequency of use and environmental conditions. For consistent high-precision results, it's recommended to recalibrate the surface plate annually, or more frequently in high-usage industrial environments.

Q: Where can this surface plate be used?

A: The Cast Iron Surface Plate is ideal for use in various industrial settings such as manufacturing plants, quality control labs, tool rooms, and inspection departments where precise measurement and component verification are crucial.

Q: What is the process involved in maintaining the surface plate's accuracy?

A: Regular cleaning, avoiding heavy impacts, and periodic recalibration are essential. Operators should ensure the working surface is free from debris, contaminants, or scratches, and always use appropriate covers when not in use.

Q: How does manual control benefit the usage of this product?

A: Manual control allows for meticulous adjustment and direct operator involvement during inspection processes, reducing the risk of errors and enabling customized handling based on each component's requirements.

Q: What are the key benefits of choosing a high-standard cast iron surface plate from an Indian exporter?

A: Customers gain assurance of quality, reliability, and long product life. As a leading Indian manufacturer and supplier, we provide competitive pricing, adherence to international standards, and trusted after-sales support.
