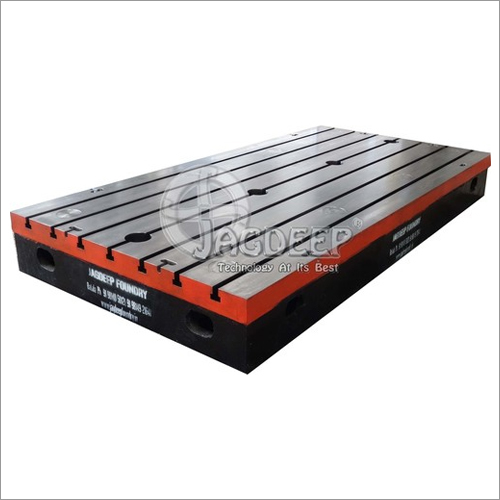

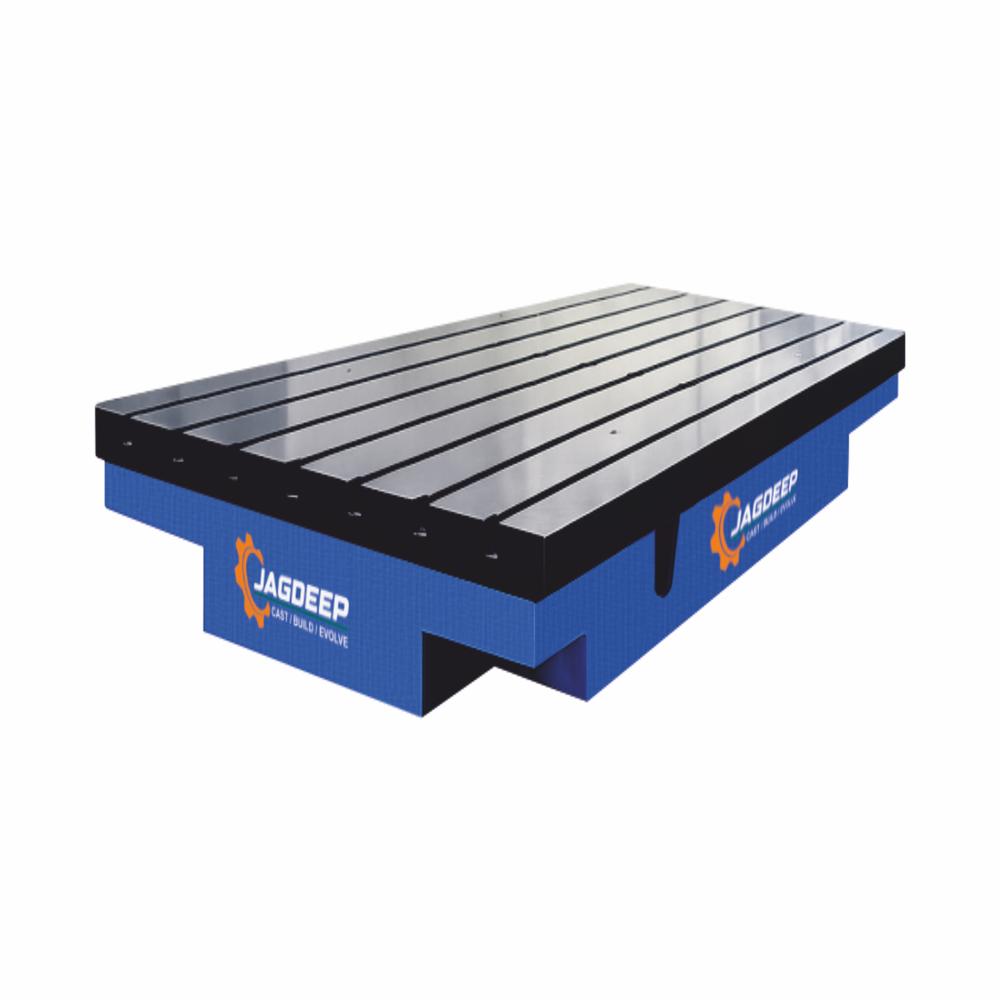

Cast Iron Bed Plate

Name: Cast Iron Bed Plate
Brand: JAGDEEP FOUNDRY
Price: 100000.0 INR
Availability: InStock

100000.0 INR/Unit

Get a Price/Quote

Product Details:

Usage Other
Function Marking, Inspection, checking accuracy
Size Standard
Accuracy 100 %
Color Silver
Standard High
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

Cast Iron Bed Plate Price And Quantity

Price 100000.0 INR/Unit
Minimum Order Quantity 1 Unit

Cast Iron Bed Plate Product Specifications

Accuracy 100 %
Color Silver
Function Marking, Inspection, checking accuracy
Size Standard
Standard High
Usage Other

Cast Iron Bed Plate Trade Information

Supply Ability 1 Unit Per Month
Delivery Time 3-4 Months
Main Domestic Market All India

Product Description

Jagdeep Bed Plates are used for mounting large jobs while machining with floor type horizontal boring machine and also used as test floors, precision reference for spotting, tool making, inspection of parts, checking accuracy of other surfaces for many types of gauging and marking out operations and test beds for mounting engines, large machines, transmission or other industrial equipment.

Specification :

Size (in mm)
2000 x 1250	2000 x 1750	3000 x 3000
2000 x 1500	2500 x 2000	3500 x 2500
2000 x 2000	2500 x 2500	4000 x 1000
2400 x 1200	3000 x 1000	4000 x 2000
2500 x 1000	3000 x 1250	5000 x 1000
2500 x 1250	3000 x 1500	5000 x 2000
2500 x 1500	3000 x 1600	6000 x 1000
2500 x 1600	3000 x 2000	6000 x 2000

Customized sizes can also be provided as per client's requirement

Flatness accuracies offered in Grade I, II or III as per DIN-876

Precision and Durability Combined

Our Cast Iron Bed Plate is crafted to deliver both exceptional precision and long-lasting durability. Each plate undergoes rigorous quality checks to ensure it meets industry standards, providing consistent accuracy for all marking and inspection needs. The robust cast iron construction supports heavy-duty industrial use without compromising on accuracy or reliability.

Versatile Industrial Applications

Designed for a wide range of applications, this bed plate is perfect for marking, inspection, and verifying accuracy in industrial environments. Its standard size accommodates diverse workloads, making it the preferred choice for manufacturers, quality inspectors, and engineers. The silver finish adds to its professional appearance, while supporting longevity in various industrial conditions.

FAQ's of Cast Iron Bed Plate:

Q: How is a Cast Iron Bed Plate used in industrial inspection and marking processes?

A: The Cast Iron Bed Plate is utilized as a precision reference surface for industrial marking, dimensional inspection, and accuracy checks. Components are placed on the bed plate to provide a flat, stable base, ensuring precise layout, measurement, and verification during quality control procedures.

Q: What features ensure the high accuracy of this Cast Iron Bed Plate?

A: This bed plate is manufactured using premium quality cast iron and undergoes meticulous surface machining and inspection to achieve 100% accuracy. Its standard size and flatness are rigorously maintained, ensuring exact measurements and dependable performance in every application.

Q: When should an industrial facility consider using a cast iron bed plate?

A: Industrial facilities should use a Cast Iron Bed Plate whenever precise marking, inspection, or checking of parts is essential. It is especially valuable in scenarios requiring stringent quality assurance, such as fabrication, assembly, or calibration tasks in manufacturing.

Q: Where can the Cast Iron Bed Plate be installed within a manufacturing environment?

A: These bed plates are typically installed in inspection rooms, metrology labs, or directly on the shop floor near machining areas. Their solid construction allows them to be placed wherever flatness and reliable accuracy are needed for industrial processes.

Q: What is the process for maintaining the accuracy of a Cast Iron Bed Plate?

A: To maintain its accuracy, regular cleaning should be performed to remove dust or debris that might affect measurements. Periodic re-calibration and careful handling also help to preserve surface integrity and ensure sustained high accuracy.

Q: How does using a high-accuracy cast iron bed plate benefit industrial operations?

A: Employing a high-accuracy bed plate enhances operational efficiency by reducing measurement errors, facilitating consistent part quality, and accelerating inspection routines. This leads to better product outcomes and strengthened quality assurance protocols.
