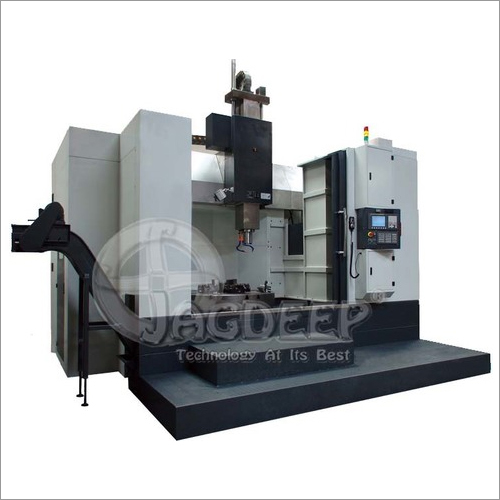

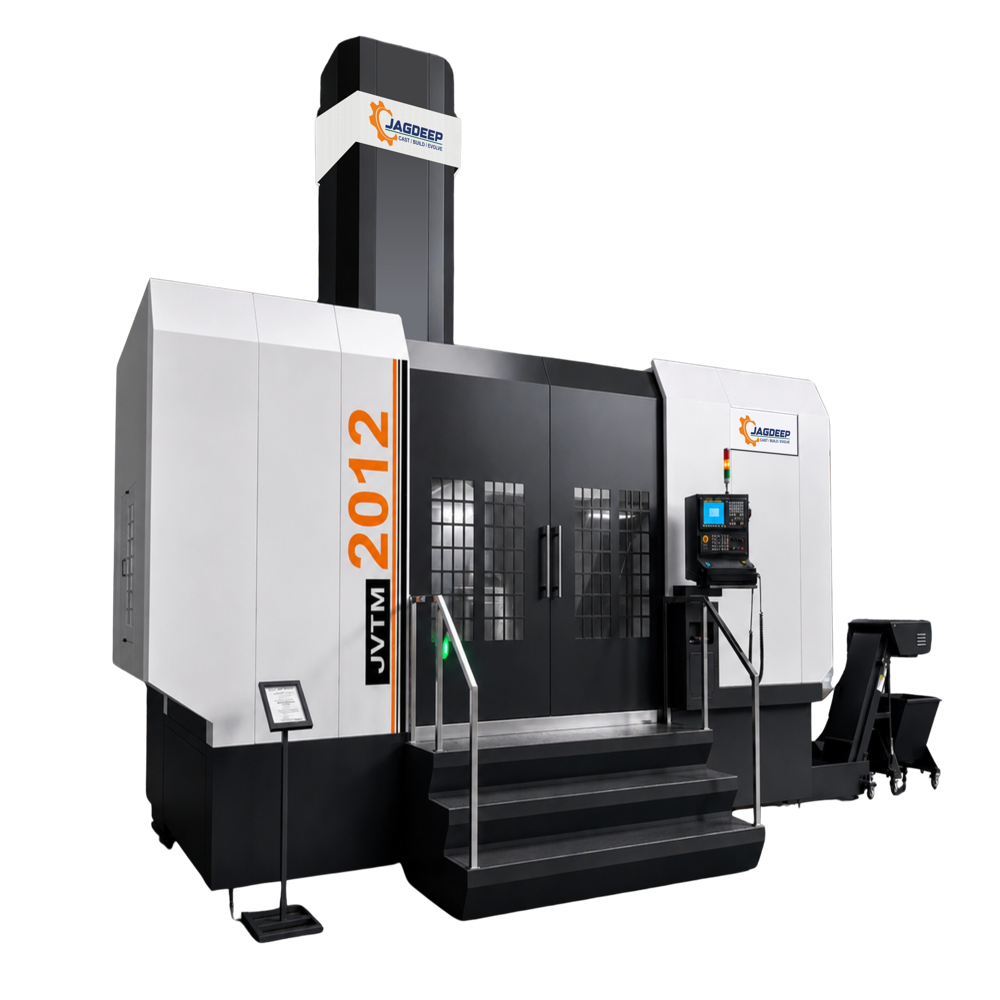

CNC Vertical Turning Lathe 2000 mm (CNC VTL)

CNC Vertical Turning Lathe 2000 mm (CNC VTL)
CNC Vertical Turning Lathe 2000 mm (CNC VTL)
Product Code : JVTC-2
Product Description

Being a quality conscious organization of this field, we are successfully committed in manufacturing, exporting and supplying the best quality gamut of CNC Vertical Turning Lathe 2000 mm (CNC VTL). This lathe is manufactured as per international quality standards under the supervision of experienced professionals using optimum quality components. Featured with manual four jaw chuck and advanced CNC system, the offered lathe is widely used for performing different machining operations. Interested clients can avail the provided CNC Vertical Turning Lathe 2000 mm (CNC VTL) in several technical specifications at reasonable prices from us.

Key points:

  • High operational fluency
  • Easy to maintain
  • Longer service life
  • Featured with advanced numeric control system

From our wide range of products, we manufacture and export an outstanding quality CNC Vertical Turning Lathe  (CNC VTL). As per the quality standards prevalent in industry, the offered turning machine is manufactured utilizing latest technology.


Descriptions

JVTC-2

Capacity



Table Diameter (Manual Chuck)

2000 mm

Max. Turning Diameter

2200 mm

Max. Turning Height

1200 mm

Table



Range of Table Speeds

3-180 rpm

Change Gear Speed

2-Steps

Travel



X Axis Rapid Rate

6000 mm / min

X Axis Horizontal Travel

+1150 mm-300 mm

Z Axis Rapid rate

6000 mm / min

Z Axis Vertical Travel

1200 mm

Electric Motor



Main Motor

20 Hp

CNC Control

Latest FANUC / SIEMENS



Standard accessories
  • Table With manual 4 Jaws Chuck
  • Automatic Lubrication System
  • Work Light
  • Complete Splash Guard
  • Bellows
  • CNC System
  • Variable Frequency Drive (VFD) For Table
  • All parts’s machining on CNC Machines
