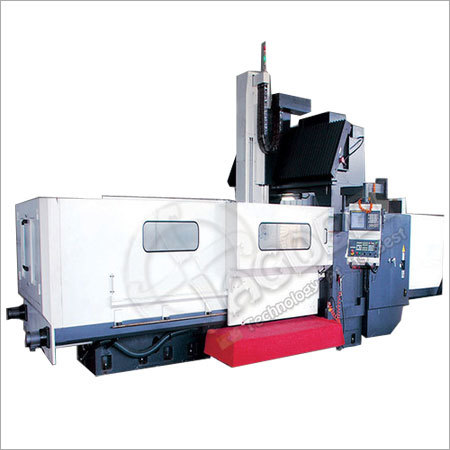

CNC Vertical Machining Center

CNC Vertical Machining Center
CNC Vertical Machining Center
Product Code : CNC VMC
Product Description

Since our inception in the year 1967, we have successfully been engaged in manufacturing, exporting and supplying excellent quality CNC Vertical Machining Center. The offered machining center is manufactured under the supervision of our highly experienced professionals as per international quality standards. The provided machining center is widely used in automotive, metal fabrication and various engineering industries for drilling, milling and other machining operations. Moreover, clients can purchase this CNC Vertical Machining Center at reasonable prices from us.

Key points:

  • Robust construction
  • High efficiency
  • Modular structure
  • Easy to maintain and operate

Specification of CNC Vertical Machining Center:

Model


2014 DMC

2516 DMC

3023 DMC

4033 DMC


Table

Units





Standard Features

Table size

mm

2000x1100

2500x1400x1300

3000x2000x1500

4000x2500x2000

AC Spindle Drive

T-slot size

mm

9x18x125

10x18x125

12x22x160

16x22/28x250

AC Servo Axis Drive

Dist. From Floor to Table

mm

920

920

920

920

LM Roller type Guide-ways (X & Y)

Max. Load on Table

kg.

5000

6000

10000

15000

Auto & Manual Coolant

Distance Between Column

mm

1400

1600

1800/2300

3000/3300

Centralized & Programmer Lubrication







Electrical with Quality Device &

Capacity






Work Light







CNC Siemens Sinumerik 828D

X-Axis Travel

mm

2200

2700

3200

4200


Y-Axis

mm

1300

1500

1700/2200

2900/3200

Optional Accessories:-

Z-Axis Travel

mm

600

800/920

800/920

920/1100


Dist. From Spindle Face to Table Top (Min.)

mm

200

200

200

200

Laser Calibrated axis for high precise positing accuracy & Repeatability

Rapid Traverse (x/y/z)

m/min.

20/20/15

20/20/15

15/15/15

15/15/15

Chip Conveyor

Cutting Feed Rate

m/min.

10

10

10

10

Linear Glass Scale for Axes







Coolant Through Spindel

Main Spindle






ATC (32/40/60/90)







Extra Day Light

Spindle speed

r.p.m.

10000

6000

6000

4000/6000

Oil Mist Collector System

Power

kw

22/26

22/26

22/26

22/26

Auto Indexing Head (Horizontal)

Spindle Taper


BT-40/BT-50

BT-50

BT-50

BT-50

Manual Horizontal Head







Rotary Table

Automatic Tool






Tool Robe







Job Probe

No. of Tools


20/24

24

24

24

Gear-Box (4000rpm)

Tool Dia. Max (All Full-Adj. Empty)


90-125/125-250

125-250

125-250

125-250

Full Cover Enclosures

Tool Length Max.


300/350

350

350

350


Accuracy







Positional Accuracy/300

mm

+0.015

+0.015

+0.015

+0.015


Repeatability


+0.006

+0.006

+0.010

+0.010


Weight (approx.)

Kg.

20000

28000

36000

58000
